ASA LL 08 24V DC HP ASA0084GD04
Katalog
ventilatory-asa-fan-kit-tt-11-12-24V-DC.pdf

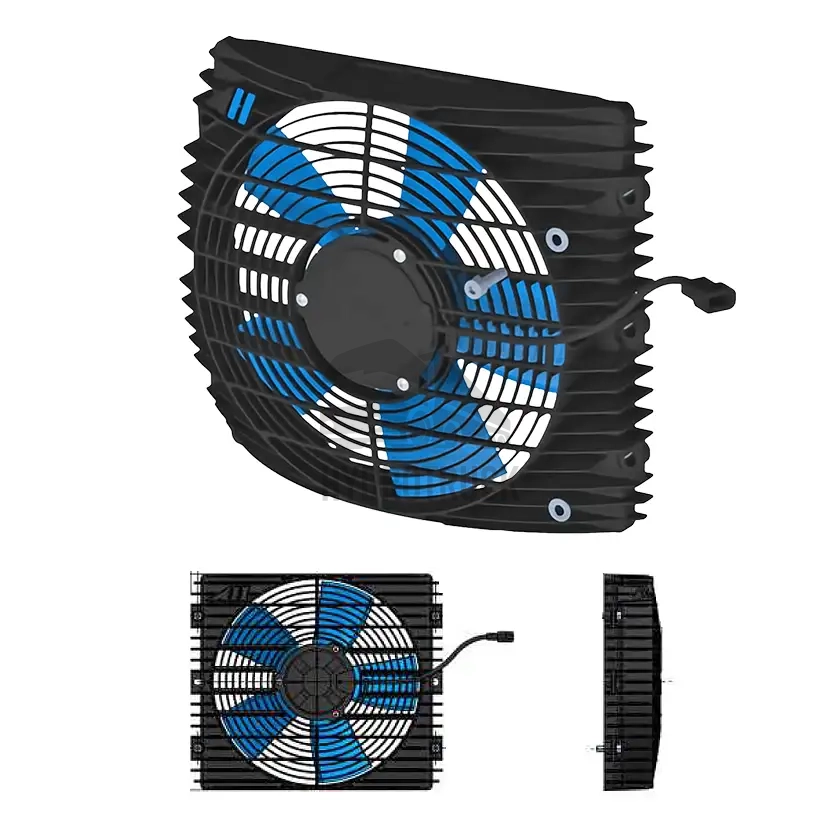

Fan kit pro chladiče TT 11, ASA 0115, 0257, 0367, ILLCO1102, 24V DC

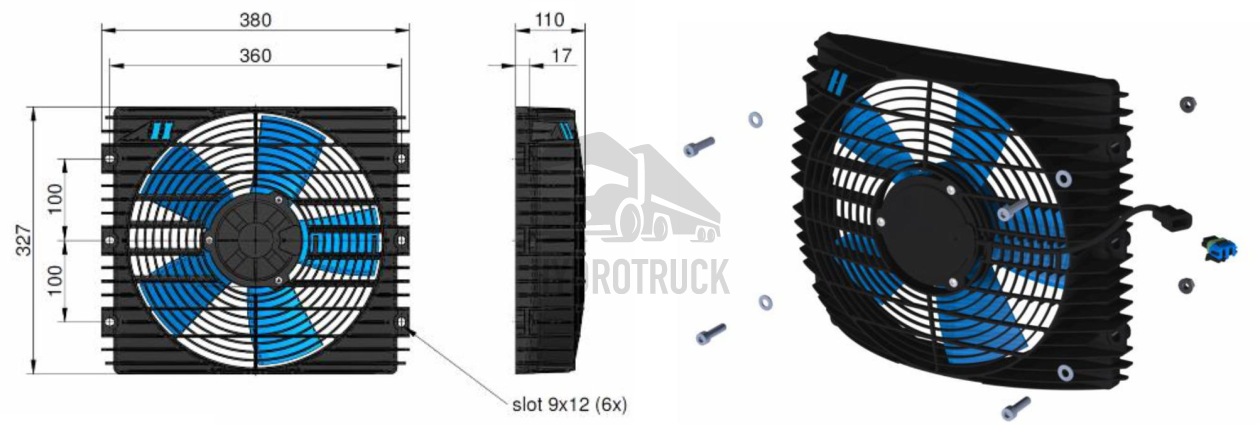

380x327x110mm, uchycení 200x360mm
Fan kit TT 11, ASA 0257 HP, ASA 0367 24V DC

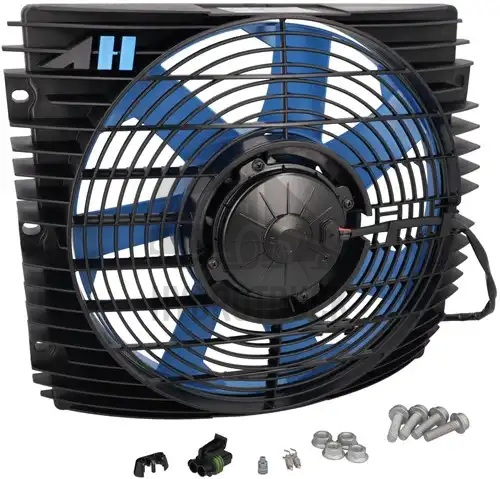

Composed of: fan blade, motor, fan shroud incl. protection guard, fastening, counter connector
Used on: ASA0075GD04, ILLCO0702S, ASATT11RD02, ASA0115AD02, ASA0257AD04, ASA0367AD02, ILLCO1102
Fan number: ILLEVA0295A6
Pozn.: Ø-lopatek 295 mm
Radiator fan ASA 0075/0115/0257/0367, ECO 07/11, TT 11 0,36HP ASA 0115 ILLELE0295A6 SPAL IP68 TYPE VA102-BP78/LL/M/I1-99A 24C MOTOR Suitable for: EPSILON Q150Z82, HIAB 986-60 94, ILLEVA0295A6 pos. 7
Velikost: 380x327x110
EZ1569, 3386783
Kompatibilní náhrada za produkt
- FAN ASA 0115 24V DC
- ASA ILLELE0295A6
- ASA ILLELE0295A6B00
- ASA ILLELE0295A6B01
- ASA ILLELE0295A6PE107
- ASA ILLEVA0295A6PE107
- ASA ILLEVA029506
- ASA ILLEVA0295A4
- ASA ILLEVA029506MA
- Spal VA102BP78LLMI199A
- Comex F2524L820109S
- Comex F2524L8201FP09S
- Comex F2524F001FP09S
- Comex F4524L8201FP03SWPC
- Spal VA102-BP78/LL/M/I1-99A
- Comex F25-24L8201-09S
- Comex F25-24E8101/FP-09S
- Comex F25-24L8201/FP-09S
- Comex F25-24F001/FP-09S
- Comex F45-24L8201/FP-03S WPC
- ASA ILLELE0295A6/PE107
- ASA ILLEVA0295A6/PE107
- Spal VA102-BP78/LL/M/I1-99A 24V
